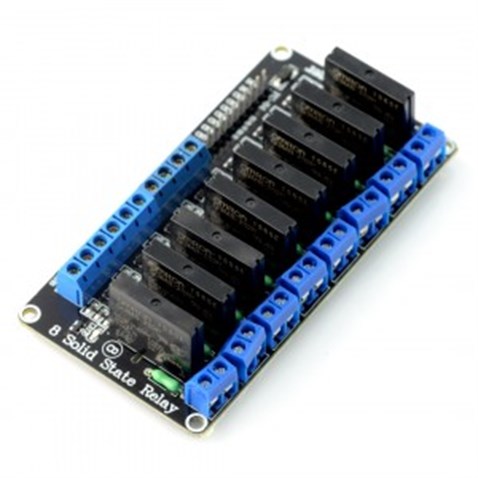

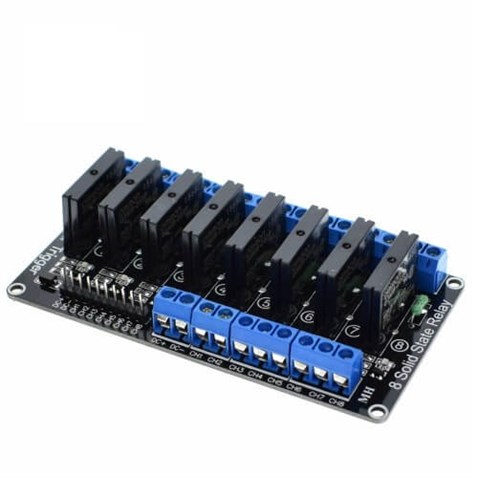

This item has been assembled, and electrical test passed.
Led indicator for each relay.
FR-4 Fiber glass PCB ( Double Layer ).
PCB thickness: 1.6mm.
Size: 155 x 55 x 24 mm ( approximately 6.1 x 2.17 x 0.95 inch ).
SSR Output (each channel):
Load voltage range: 75 to 264VAC (50/60Hz).
Load current: 0.1 to 2 AMP.
Power supply:
5VDC / 160mA (all channel ON).
Input control signal voltage:
0V - 0.5V Low stage (SSR is OFF),
0.5V - 2.5V (unknown state).
2.5V - 20V High state (SSR is ON).
SSR Spec :
Manufacturer: OMRON
Part number: G3MB-202P, 5V version.
Isolation: Phototriac.
Zero cross: Yes.
Rated output load: 2A at 100 to 240VAC.(50/60Hz).
Load type: General purpose.
