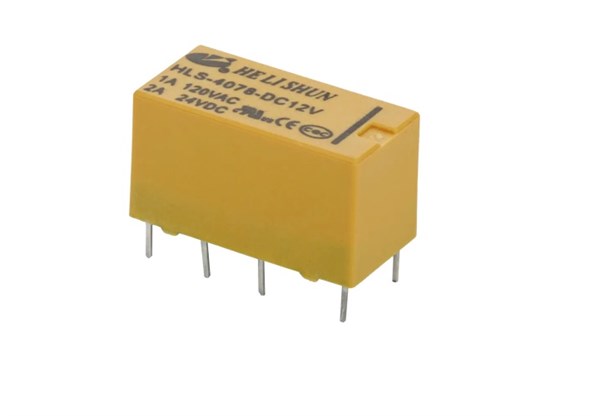

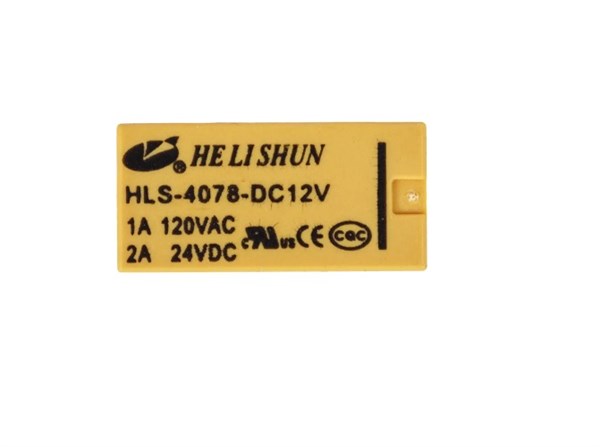

Ürün Özelliği
|
Contact Form |
2C |
|
Contact Material |
Ag+Au |
|
Contact Ratings |
1A 120VAC;2A/24VDC |
|
Max Switching Voltage |
240VAC/60VDC |
|
Max Switching Current |
2A |
|
Max Switching Power |
120VA/30W |
|
Initial Contact Resistance |
50m Ω Max at 6VDC 1A |
|
Life Expectancy Electrical |
100,000 Operations(rated load) |
|
Life Expectancy Mechanical |
10,000,000 Operations(no load) |
GENERAL DATA :
|
Insulation Resistance |
100M Ω Min at500VDC |
|
|
Dielectric Strength Between Open Contacts |
500VAC 50-60HZ( 1 minute) |
|
|
Dielectric Strength Between Contacts And Coil |
1000VAC 50-60HZ( 1 minute) |
|
|
Operate Time |
6ms max |
|
|
Release Time |
4ms max |
|
|
Ambient Temperature |
-30 ℃ to+70 ℃ |
|
|
Shock Resistance |
Malfunction |
10G |
|
Destruction |
15G |
|
|
Vibration Resistance |
10-55Hz,1.5mm double amplitude |
|
|
Ambient humidity |
40-85% RH |
|
|
Weight |
Approx 5g |
|
|
Safety Standard |
UL CE CQC |
|
COIL DATA: (@20 ℃ )
|
Rated Voltage (VDC) |
Coil Resistance Ω ( ± 10% ) |
Max Operate Voltage (VDC) |
Min Release Voltage (VDC) |
Max Applied Voltage (VDC) |
|||
|
0.15W |
0.2W |
0.36W |
0.45W |
||||
|
3 |
60 |
45 |
25 |
20 |
2.25 |
0.15 |
3.9 |
|
5 |
167 |
125 |
70 |
50 |
3.75 |
0.25 |
6.5 |
|
6 |
240 |
180 |
100 |
80 |
4.5 |
0.3 |
7.8 |
|
9 |
540 |
405 |
225 |
180 |
6.75 |
0.45 |
11.7 |
|
12 |
960 |
720 |
400 |
320 |
9 |
0.6 |
15.6 |
|
24 |
38400 |
2800 |
1600 |
1280 |
18 |
1.2 |
31.2 |
|
48 |
- |
11520 |
6400 |
5100 |
36 |
2.4 |
62.4 |

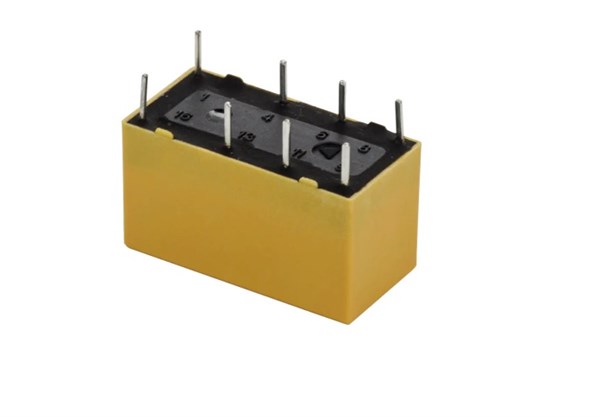

PC Board Layout & Wiring Diagram (Bottom View)
