Ürün Özelliği

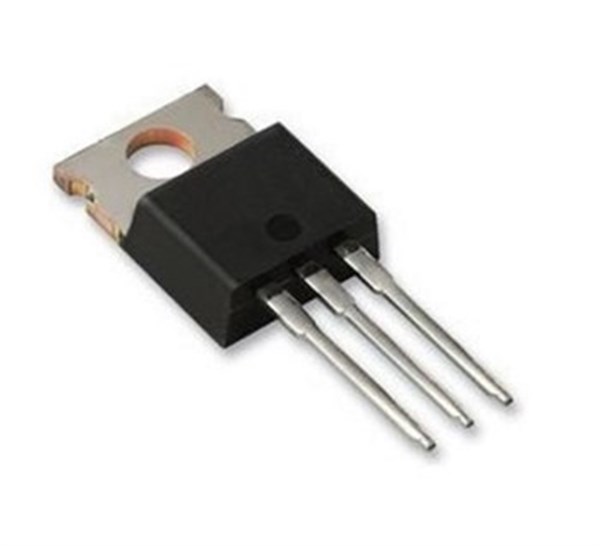

| Parametrics | IRG4BC20U |
|---|---|
| Eoff (Hard Switching) | 0.12 mJ |
| Eon | 0.1 mJ |
| IC (@ 25°) max | 13 A |
| IC (@ 100°) max | 6.5 A |
| ICpuls max | 52 A |
| Ptot max | 60 W |
| Package | TO-220 |
| QGate | 27 nC |
| Switching Frequency min max | 1 kHz 1 kHz |
| Switching Frequency | Gen 4 1 kHz |
| Technology | IGBT Gen 4 |
| VCE(sat) | 1.85 V |
| VCE max | 600 V |
| td(off) | 190 ns |
| td(on) | 20 ns |
| tf | 140 ns |
| tr | 14 ns |
